The Thor Model 150 is our most powerful winding system, delivering up to 216 inch-pounds of torque for the most demanding heavy-gauge applications. When standard heavy-duty machines are not enough, Thor gets the job done.
A 1 HP, 90V DC motor drives through a three-ratio gearbox (1:1, 2:1, 3:1) to give you the right balance of speed and torque for any application. At the 3:1 ratio, you get maximum torque at 0-116 RPM. At 1:1, you get 0-583 RPM for faster production on lighter work. Wire capacity extends to #6 AWG with a 14-inch maximum coil diameter.
The integrated 24-inch traverse with 0.0001-inch resolution handles long bobbins with precision. Digital controls provide 99 presets with a counter range from 0 to 99,999 turns. The robust construction weighs in at 360 lbs on a 48 x 26 inch footprint—built to stay put under heavy loads.
Designed for transformer manufacturing, heavy-duty industrial coils, and any application requiring serious torque and capacity. Made in our California facility with direct engineering support.

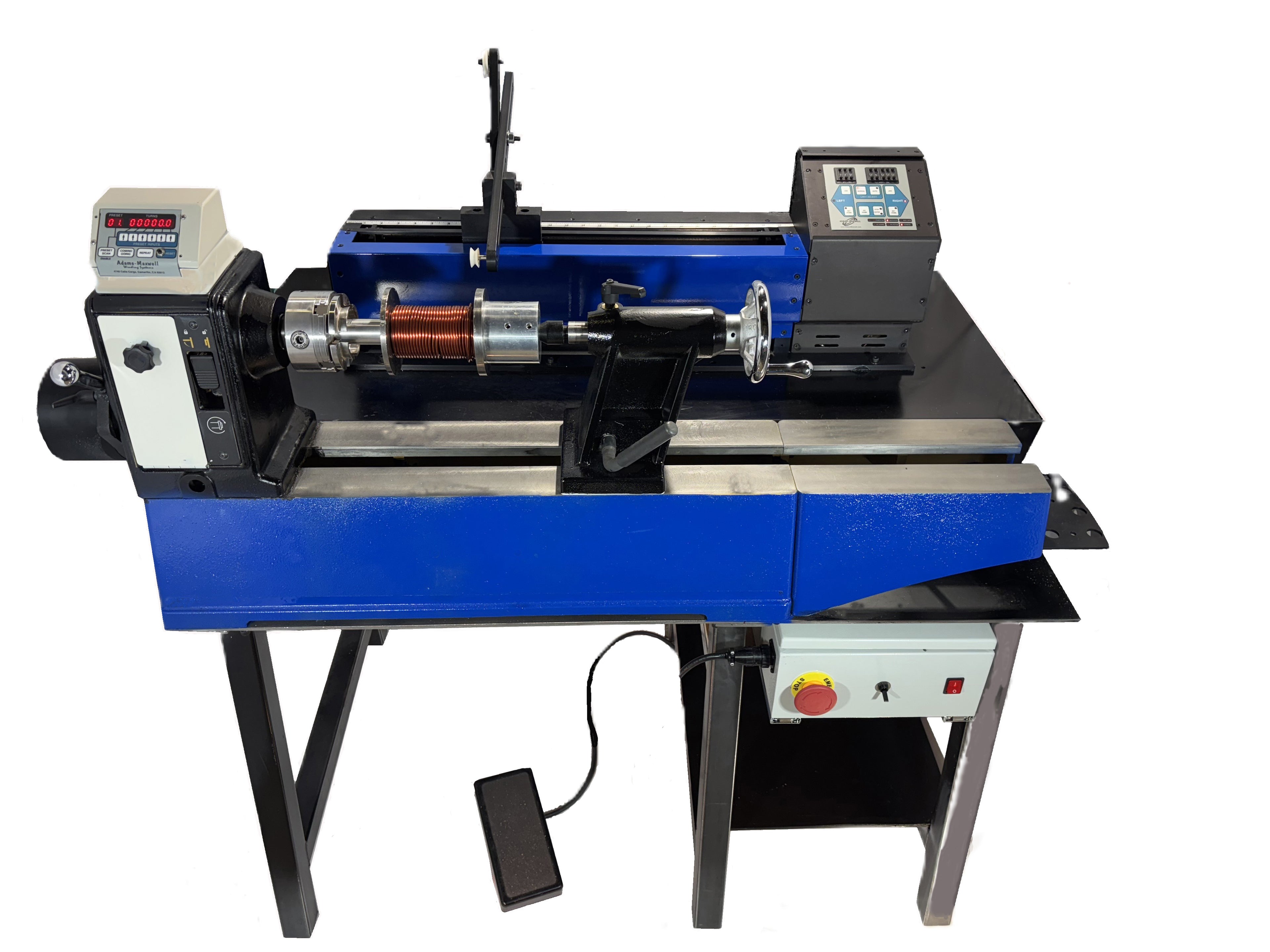

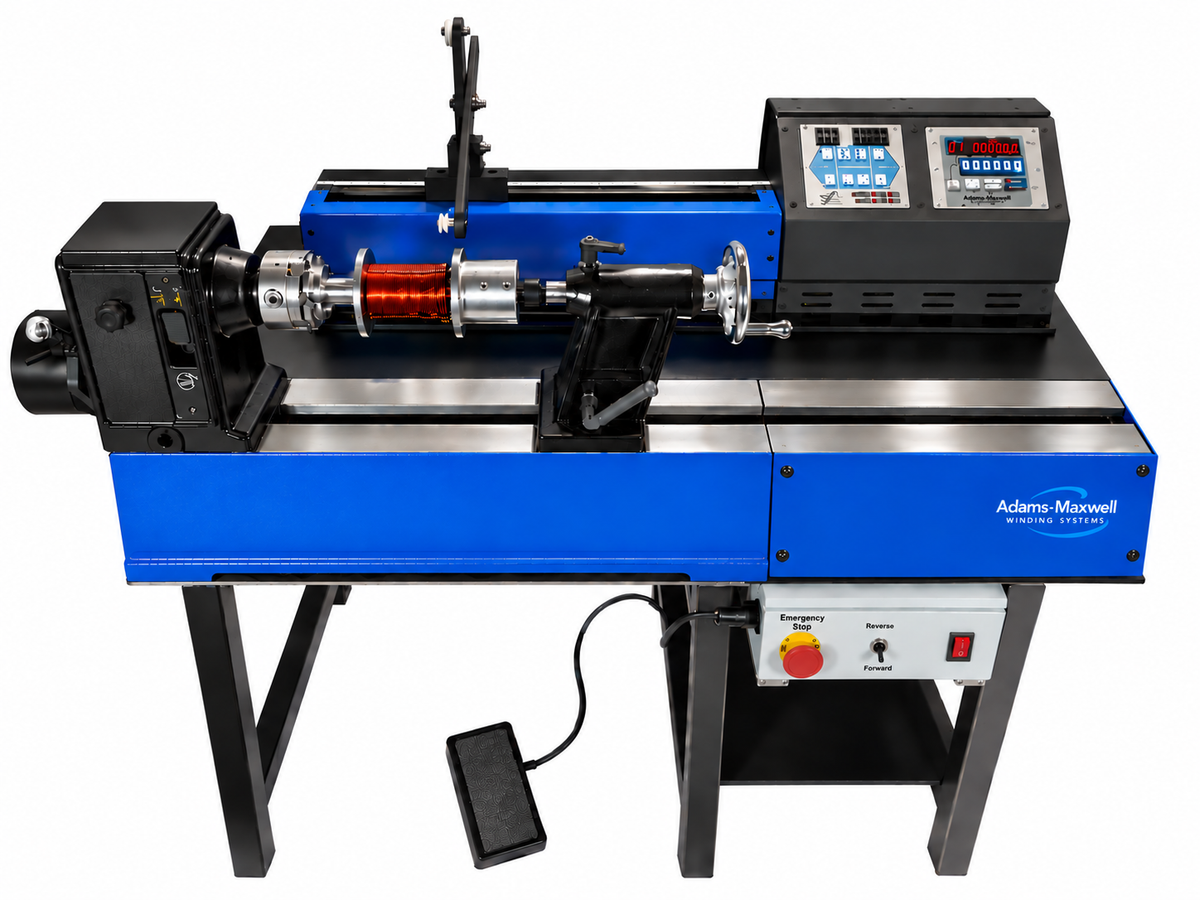

Thor Model 150
High-Torque Heavy Duty Coil Winder
$0.00
SELECT MODEL
| Model | Max RPM | AWG Range | Torque | Travel | Spec |
|---|---|---|---|---|---|
| 116 - 265 - 583 | #6 | 216 in-lb 108 in-lb 54 in-lb | 24" |
Default Title
Selected
$0.00
A 1 HP, 90V DC motor drives through a three-ratio gearbox (1:1, 2:1, 3:1) to give you the right balance of speed and torque for any application. At the 3:1 ratio, you get maximum torque at 0-116 RPM. At 1:1, you get 0-583 RPM for faster production on lighter work. Wire capacity extends to #6 AWG with a 14-inch maximum coil diameter.
The integrated 24-inch traverse with 0.0001-inch resolution handles long bobbins with precision. Digital controls provide 99 presets with a counter range from 0 to 99,999 turns. The robust construction weighs in at 360 lbs on a 48 x 26 inch footprint—built to stay put under heavy loads.
Designed for transformer manufacturing, heavy-duty industrial coils, and any application requiring serious torque and capacity. Made in our California facility with direct engineering support.
Maximum Torque
Up to 216 in-lb torque for heavy gauge wire up to AWG 6.
Precision Traverse
0.0001" resolution across 24" travel for exact wire placement.
Flexible Gearing
Three reduction ratios (1:1, 2:1, 3:1) to optimize speed vs. torque.
Built to Last
Heavy-duty construction with 1-year warranty on parts and labor.
Technical Specifications
Mechanical
| Traverse Length | 24" |
| Spindle Speed | 0-583 (varies by ratio) |
| Wire Range | Up to 6 |
| Best For | Transformer manufacturing, heavy-duty industrial coils, high-torque applications requiring up to 216 in-lb torque and 14" coil diameter |
Electrical & Physical
| Power Requirements | 117V AC, 50-60 Hz, 25 Amp |
| Dimensions | 48" × 26" |
| Weight | 360 lbs |
| Machine Type | Heavy Duty Automatic |
Watch Tutorial
See It In Action
Watch our step-by-step guide to setting up and operating your machine.
- Complete setup walkthrough
- Programming basics
- Sample Windings
Recommended Accessories
Enhance your system
No accessories collection selected. Choose a collection in theme editor.
Related Products
Need Modifications?
We can customize this machine with special fixtures, tooling, or modifications for your specific application.
Compare Similar Machines
See how this machine compares to alternatives
| Specification |
 1400 Series Bobbin Winder
$5,495.00
|
 1260 Series Automatic Winder
$21,995.00
|
|---|---|---|
| Overview | ||
| Best For | Heavy gauge transformers, power inductors, high-torque solenoids, industrial components | Large transformers, power inductors, heavy gauge production, extended coil lengths |
| Type | Heavy Duty Hand Winder | Heavy Duty Automatic |
| Performance | ||
| Max RPM | 2600 (varies by model) | 2600 (varies by model) |
| AWG Range | 5-15 | 5-15 |
| Traverse Length | Manual | 24" |
| Physical | ||
| Footprint | 18" x 12" | 33" x 14" |
| Weight | 65 lbs | 85 lbs |
| Power | 115V/230V 50/60Hz | 115V/230V 50/60Hz |
| Support & Warranty | ||
| Warranty | 1 Year | 1 Year |
| Lead Time | 2-4 Weeks | 2-4 Weeks |
| Made in USA | ||
| View Details | View Details | |
Frequently Asked Questions
What accessories are required vs. optional?
None required—the machine is ready to use out of the box with basic arbors included. Recommended: Tensioner for consistent wire tension (especially for finer gauges), Tailstock for longer coils, and Hand Controller for automated speed control.
Can this handle fine-gauge wire like 42 AWG?
Yes, this machine handles a wide range of wire gauges. For finer gauges (40-44 AWG), we strongly recommend pairing with our Azonic Tensioner for optimal tension control and to prevent wire breakage.
What support is available after purchase?
Every machine includes lifetime phone and email support directly from our engineering team in Moorpark, CA. No call centers—when you call, you speak with someone who helped build your machine. We also offer on-site training and calibration services.
How do I order? Can I pay by purchase order?
You can order directly through our website with a credit card, or request a formal quote for purchase order processing. We work with procurement departments and offer NET 30 terms for qualified business accounts.
