Precision Coil Winding for Medical Devices

Micro-coil precision and variable pitch winding for implantable devices, diagnostic sensors, and therapeutic equipment requiring biocompatible materials.

Talk to an Engineer View Products
Medical Devices

Industry Snapshot

Typical Materials

  • Platinum wire
  • Tungsten
  • Molybdenum
  • Nitinol

Common Applications

  • Catheter coils
  • Pacemaker components
  • MRI gradient coils
  • Ultrasound transducers

Quality Standards

  • ISO 9001:2015
  • NIST-Traceable Calibration

Key Requirements

  • Ultra-fine wire handling
  • Variable pitch capability
  • Multi-filar winding
  • Sub-gram tension control
7μm
Micro-Wire Capability
Catheter coils
<1g
Tension Control
Ultra-fine handling
±0.001"
Position Accuracy
Variable pitch winding

Recommended Machines

These machines are most commonly specified for this industry

1201 Series Bobbin Winder

1201 Series Bobbin Winder

Precision Benchtop Bobbin Winder

$3,695.00
Ships in 2-4 weeks
RPM 0-5000 (varies by model)
AWG 10-56
Traverse Manual
View DetailsSpecs

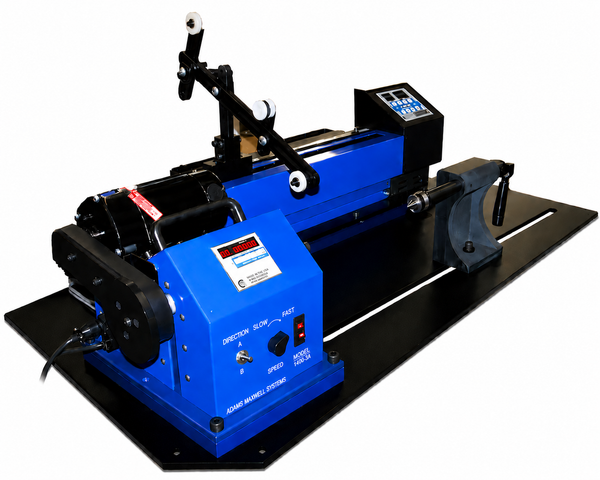

1260 Series Automatic Winder

1260 Series Automatic Winder

Heavy-Duty Automatic Winding System

$21,995.00
Ships in 2-4 weeks
RPM 0-2600 (varies by model)
AWG 5-15
Traverse 24"
View DetailsSpecs
1250 Series Automatic Winder

1250 Series Automatic Winder

Programmable Automatic Coil Winding System

From $8,995.00
Ships in 2-4 weeks
RPM 0-5000 (varies by model)
AWG 10-56
Traverse 7" (S) / 14" (L)
View DetailsSpecs
View All Machines

Need Industry-Specific Modifications?

We build custom fixtures, tooling, and machine modifications tailored to your industry's unique requirements.

Discuss Your Application

Precision Repeatability

±0.001" positioning accuracy ensures consistent coils across production runs.

Full Traceability

NIST-traceable calibration and complete documentation packages for audits.

Direct Engineering Support

Talk to the people who built your machine—no call centers, no scripts.

Made in USA

All machines built in our Moorpark, CA facility since 1976.

Frequently Asked Questions

Can you wind ultra-fine wire for medical implantables?

Yes. Our machines handle wire down to AWG 56 (0.012mm) with sub-gram tension control and ±0.001" position accuracy. We support platinum, tungsten, nitinol, and other biocompatible materials used in pacemaker leads, neurostimulators, and catheter coils.

What certifications does Adams Maxwell hold?

Our facility is ISO 9001:2015 certified with strict quality and compliance standards (ISO/UL standards). All calibration is NIST-traceable. We can provide complete documentation packages to meet specific program requirements for aerospace, defense, and medical applications.

What wire gauge range do you support?

Our machines support wire gauges from AWG 5 (heavy gauge for power applications) to AWG 56 (ultra-fine for medical and aerospace). The 1200 and 1250 Series handle AWG 10-56, while the 1260HD and 1400HD Series are optimized for heavy-gauge AWG 5-15 applications.

What are your lead times?

Standard machines typically ship in 2-4 weeks. Custom configurations and special tooling may require 4-6 weeks. U.S.-based manufacturing means no overseas supply chain delays—we maintain inventory of common components to expedite orders when possible.

Ready to Discuss Your Application?

Talk to an engineer about your specific requirements and get a custom quote.

Talk to us now
ISO 9001
Certified Quality
NIST Traceable
Calibration Standards
Made in USA
Since 1976
1-Year Warranty
Parts & Labor
