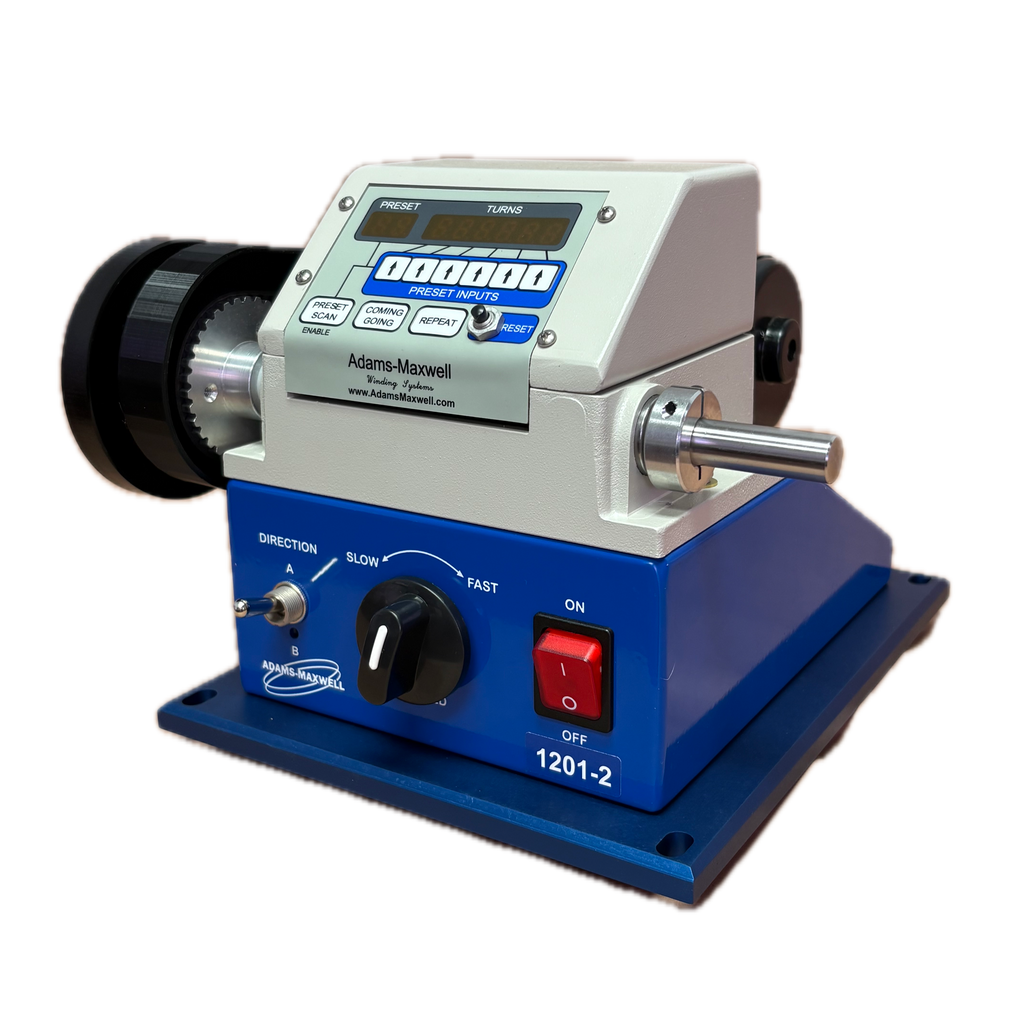

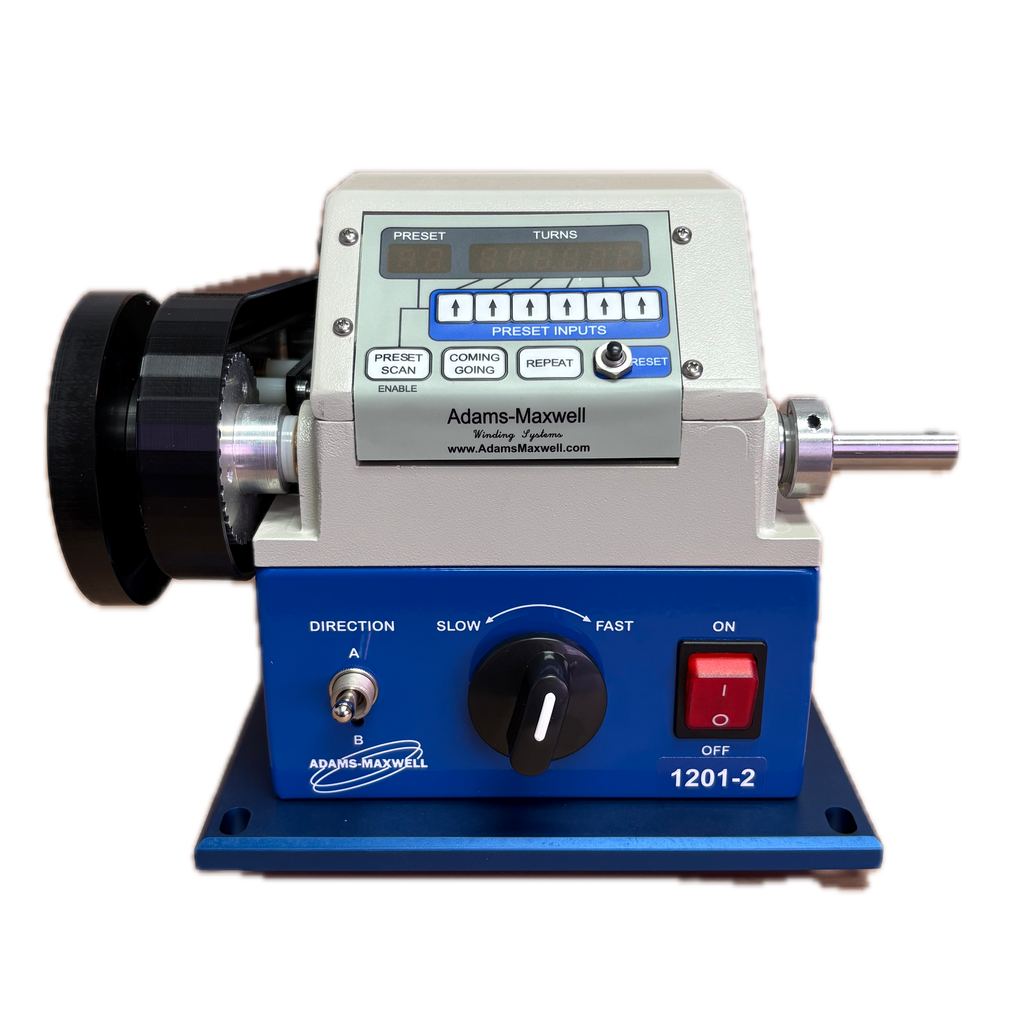

1201 Series Bobbin Winder
Precision Benchtop Bobbin Winder
The 1201 Series is our most popular benchtop bobbin winder, designed for medium to fine wire applications. This compact, reliable machine delivers the precision control you need for production winding without taking over your workspace.
Four models cover the full range of speed and wire requirements—from high-speed fine wire work at 3,600 RPM down to heavier gauge applications with increased torque. Every machine features dynamic braking for precise stopping, a multi-range electronic foot control for intuitive speed adjustment, and a bright LED display showing turn count to the nearest 1/10 turn.
Program up to 99 presets to define stopping points within your winding operation. Each preset can be set as absolute or additive, and presets can be sequenced together into groups for complex multi-section coils. The arbor direction is switch-selectable for top-coming or top-going rotation with positive or negative count.
Pairs with the 1250 Automatic Traverse for hands-free wire layering, or use standalone with manual guidance for prototyping and short runs.
Included with purchase:
1201 Winder
Foot Pedal Speed Controller
Power Cord
Operators Manual
1-year parts and labor warranty
Precision Control
±0.001" positioning accuracy for consistent, repeatable windings every time.
Quick Setup
Simple manual controls for fast changeovers and prototyping work.
Built to Last
Heavy-duty construction with 1-year warranty on parts and labor.
Expert Support
Direct access to our engineering team for setup and troubleshooting.
Technical Specifications
Mechanical
| Traverse Length | Manual |
| Spindle Speed | 5000 (varies by model) |
| Wire Range | 10-56 |
| Best For | R&D prototyping, small production runs, educational facilities, fine wire sensors |
Electrical & Physical
| Power Requirements | 115V/230V 50/60Hz |
| Dimensions | 12" x 8" |
| Weight | 20 lbs |
| Machine Type | Hand Winder |

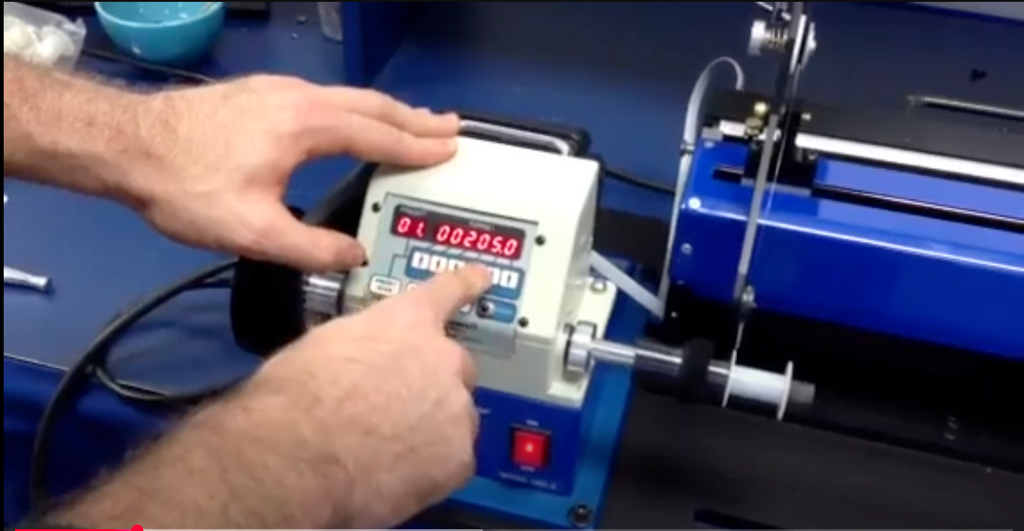

See It In Action
Watch our step-by-step guide to setting up and operating your machine.
- Complete setup walkthrough
- Programming basics
- Sample Windings
Recommended Accessories
Enhance your systemRelated Products
Need Modifications?
We can customize this machine with special fixtures, tooling, or modifications for your specific application.
Compare Similar Machines
See how this machine compares to alternatives
| Specification |
 1250 Series Automatic Winder
From $8,995.00
|
|---|---|
| Overview | |
| Best For | Production winding, multi-sequence coils, repeatable recipes, orthocyclic patterns |
| Type | Automatic Winder |
| Performance | |
| Max RPM | 5000 (varies by model) |
| AWG Range | 10-56 |
| Traverse Length | 7" (S) / 14" (L) |
| Physical | |
| Footprint | 26" x 12" (S) / 33" x 12" (L) |
| Weight | 45 lbs |
| Power | 115V/230V 50/60Hz |
| Support & Warranty | |
| Warranty | 1 Year |
| Lead Time | 2-4 Weeks |
| Made in USA | |
| View Details | |
